40 Meter Belles Receiver

04/22/2001   by   WA6OTP

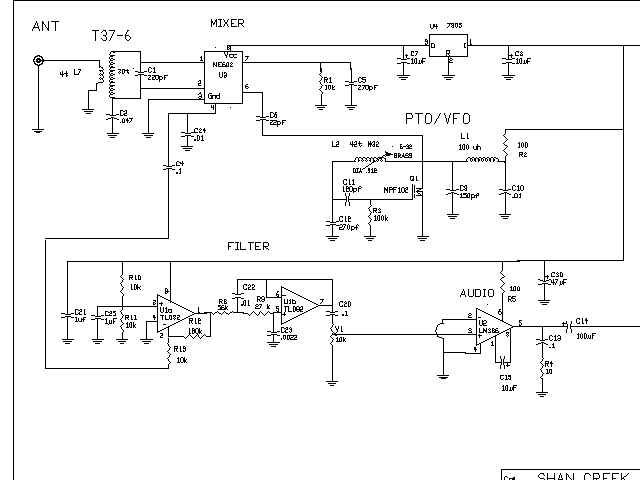

This is the new 40 meter Receiver building project for the
Western Belles, a YL group here in Southern Oregon.
It is 3 inches square.  It is like the 80 meter rig.
PTO/VFO is middle front.  MIXER upper left. Filter lower left.
Audio amp at the end of the PTO coil.  Room for the Transmitter
on the right side.  RCVR  tunes nicely 6880 kc to 7400 kc.
I picked the tuning so they could listen to Foreign Broadcast as
well as the Ham band.

40 Bells Receiver in PDF
