CNC
PC Board RouterHome Made
136 Hours, $390.00

Finished CNC

Every Piece Indicated square

Some Plates finish milling

Tap a million holes

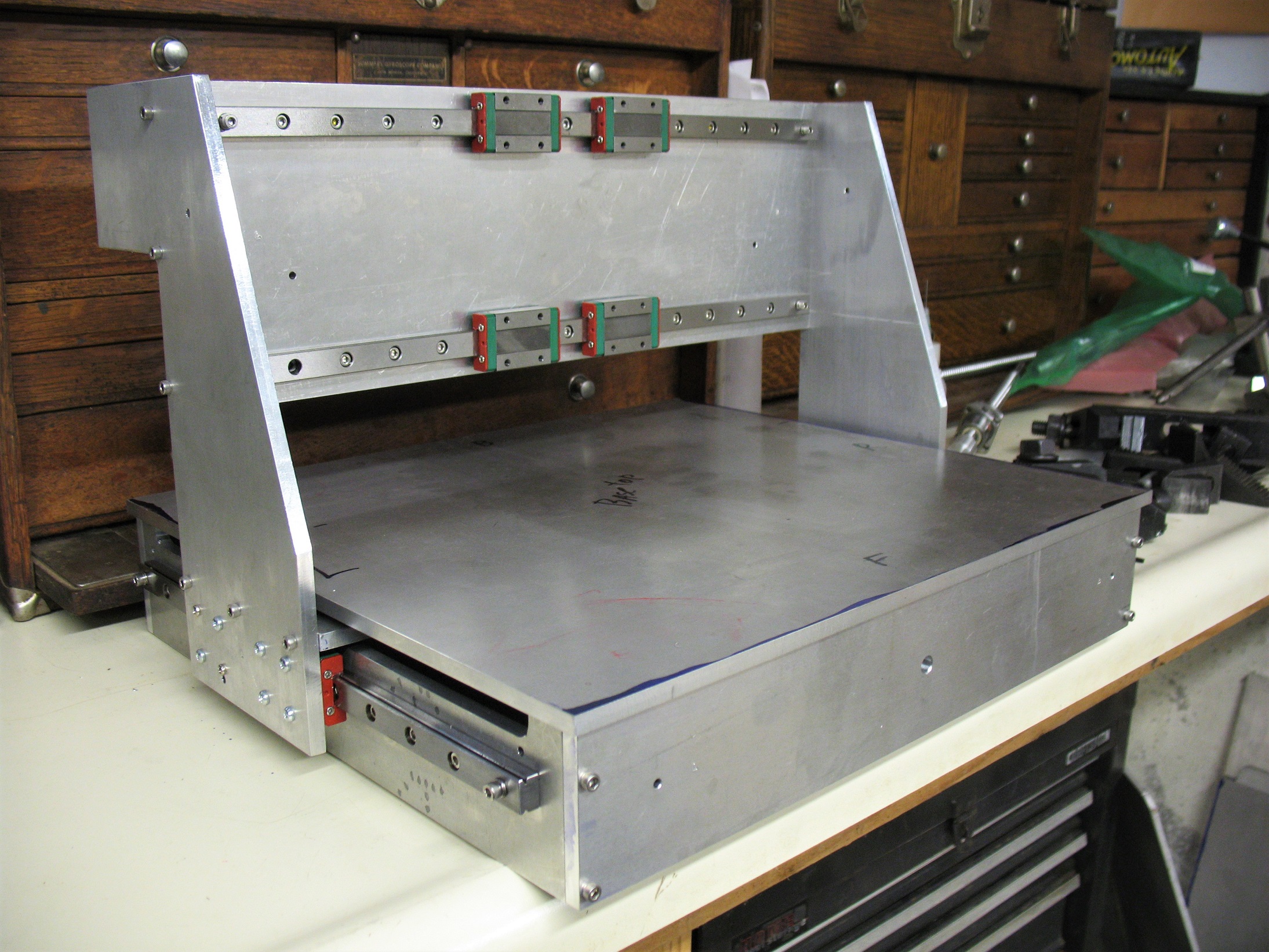

Y axis rails and guides on

X axis rails and guides on

Motors Mounted

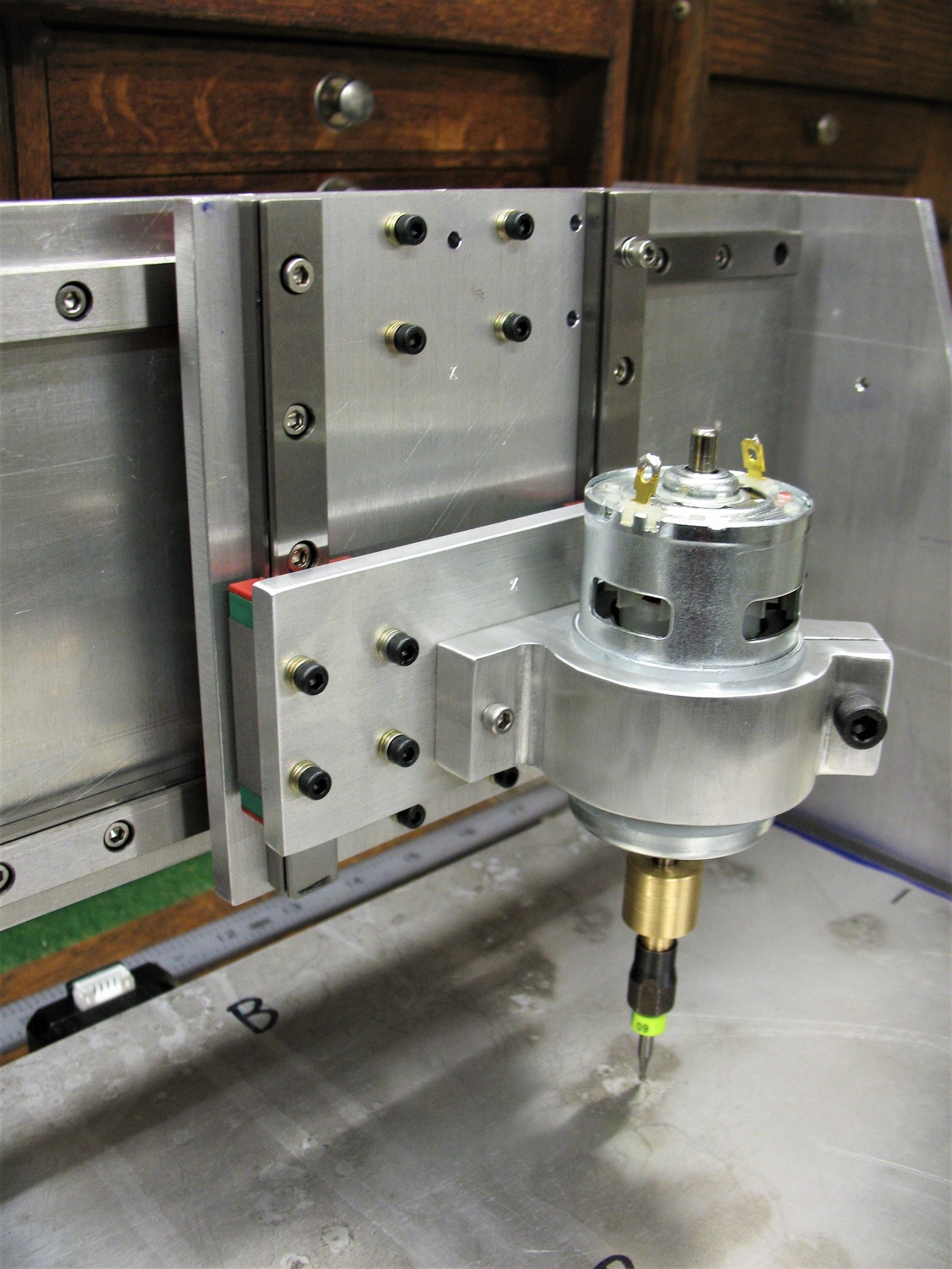

Spindle Motor Clamp Made

X axis Plates made for carriage done

Ball screw in for Z axis

Y axis Ball screw in

X axis Ball screw in

X axis hand wheel

Z and Y Hand wheels

Bed mounted ready to test

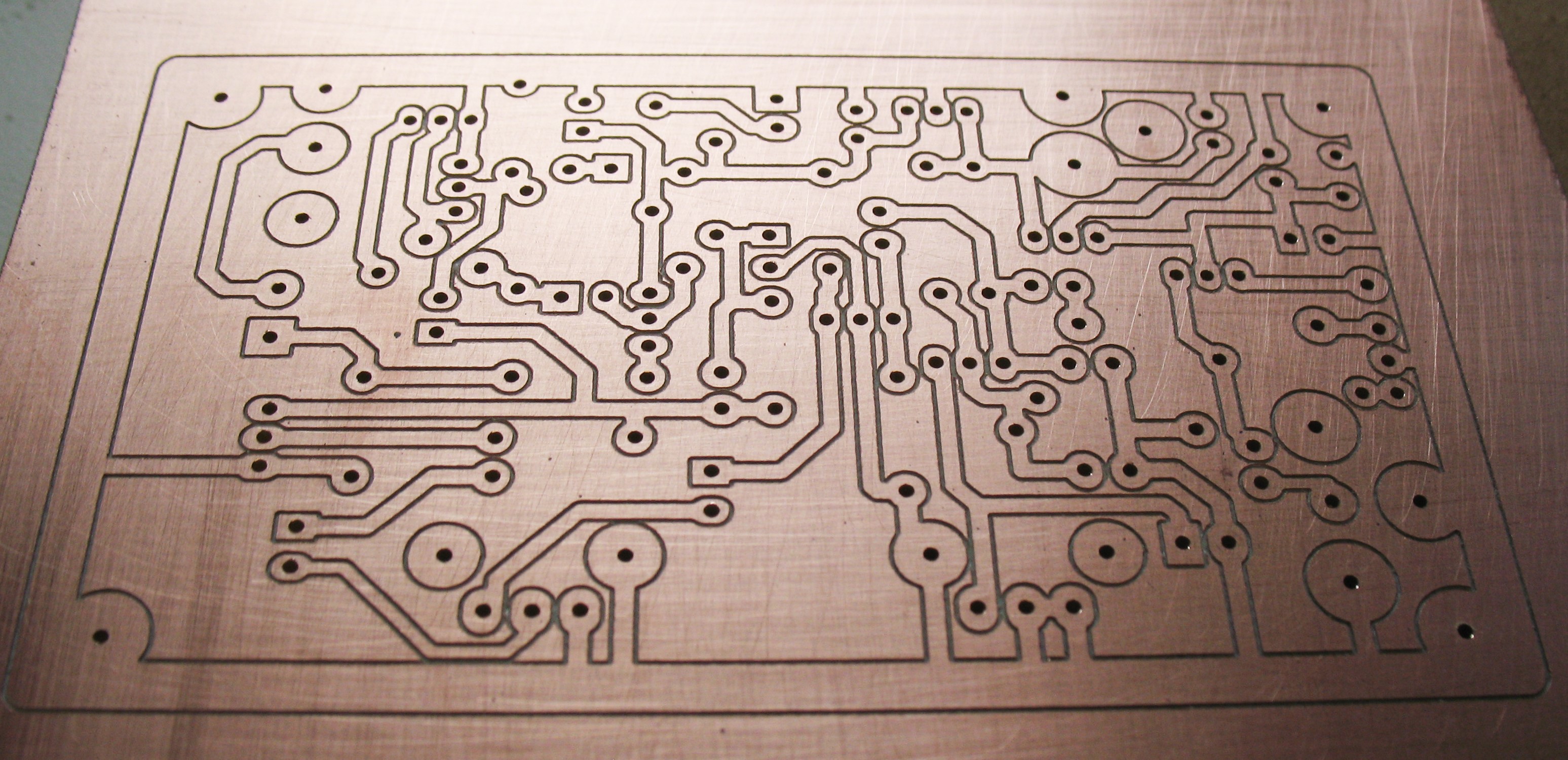

Board Traces Routed and spot drilled

Off the CNC

Board on Light table, Curvature is the camera lens

Drill the hole with home made drill press

Holes Drilled small size first

Top mask iron on

Finished Board, RF amp, Regen and Audio Amp

PC Router at work
