Plotter
![Plotter](Plotter%20II_a.jpg)
![Plotter](Plotter%20II_b.jpg)
![Plotter](Plotter%20II_c.jpg)
![Plotter](Plotter%20II_d.jpg)
![Plotter](Plotter%20II_e.jpg)
![Plotter](Plotter%20II_f.jpg)
![Plotter](Plotter%20II_g.jpg)
This Plotter uses Core XY. You can draw art work, schematics or scratch PC Boards it is fast and fun.
![Plotter](NewPlotterCoreXY.jpg)
Servo goes to End Stop +Z
![Plotter](np_1_25_18.jpg)

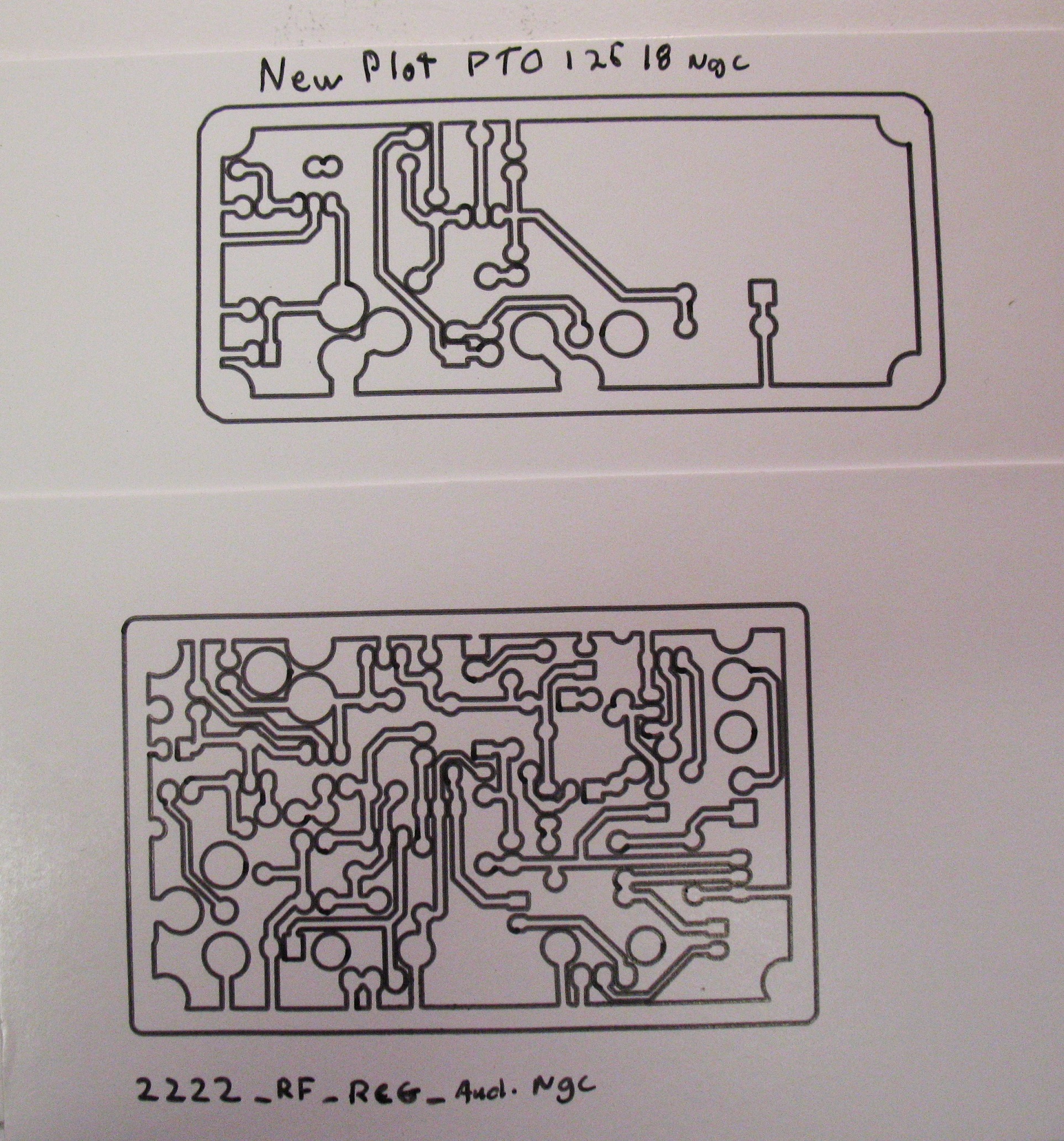

Penned Out Dip Trace file before Scratching PC Board.
![Plotter](PLOT_TEST_Board_b.jpg)
Board is on light table.
I use DipTrace, Flat Cam and Universal G Code Sender. You must edit the G code for the servo.
Z up is M5 and Z down M3 S030
Plotter will draw 300mm by 170mm, no limit switches, I use the Core XY GBRL.9 to set the limit.
